在线钠离子分析仪

Online sodium ion analyzer

TCSON-NA6101

发布时间：2026-08-03

Release time:2026-08-03

在线钠表分析仪特点： 1、仪表由电源板、测量板、主板、触摸屏组成，方便后期维护、维修； 2、仪表独立安装pH电极，实时监测样水碱化效果； 3、仪表结构设计采用符合离子电极测量技术，并优化流路及流通池设计； 4、仪表采用5英寸触摸屏，仪表读数观察和操作更方便； 5、仪表人机操作系统操作维护便捷，界面友好。

Online Sodium Analyzer – Features The instrument consists of a power board, measurement board, main board, and touchscreen, facilitating easy maintenance and repair. A separately mounted pH electrode provides real‑time monitoring of the sample alkalinization (conditioning) effect. The instrument design incorporates ion‑selective electrode measurement technology, with optimized flow path and flow cell configuration. Equipped with a 5‑inch touchscreen for clearer readouts and more convenient operation. The HMI (Human‑Machine Interface) system is user‑friendly, enabling simple operation and maintenance.

产品分类 Products
Classification

全部分类 Show All

水质分析仪表 Water quality analysis instrument

SDI分析仪产品 SDI Analyzer

总有机碳（TOC）产品 TOC Analyzer

滴定法分析仪 Titration Analyzer

比色法分析仪 Colorimetric Analyzer

在线pH/ORP分析仪 Online pH/ORP analyzer

在线电导率分析仪 Online conductivity analyzer

在线浊度分析仪 Online turbidity analyzer

在线钠离子分析仪 Online sodium ion analyzer

在线硅/磷酸盐分析仪 Online silicate/phosphate analyzer

本安防爆在线分析仪表 Intrinsically safe explosion-proof analyzer

本安防爆pH/ORP分析仪 Intrinsically safe explosion-proof pH/ORP analyzer

本安防爆电导率分析仪 Intrinsically safe explosion-proof conductivity analyzer

工艺过程解决方案 Industrial Process Solutions

智能阻垢器装置 Intelligent scale inhibitor device

中压紫外（UV）杀菌系统 Medium-Pressure UV Disinfection System

产品介绍 product presentation

技术参数 technical specification

下载 download

订购指南 ordering guide

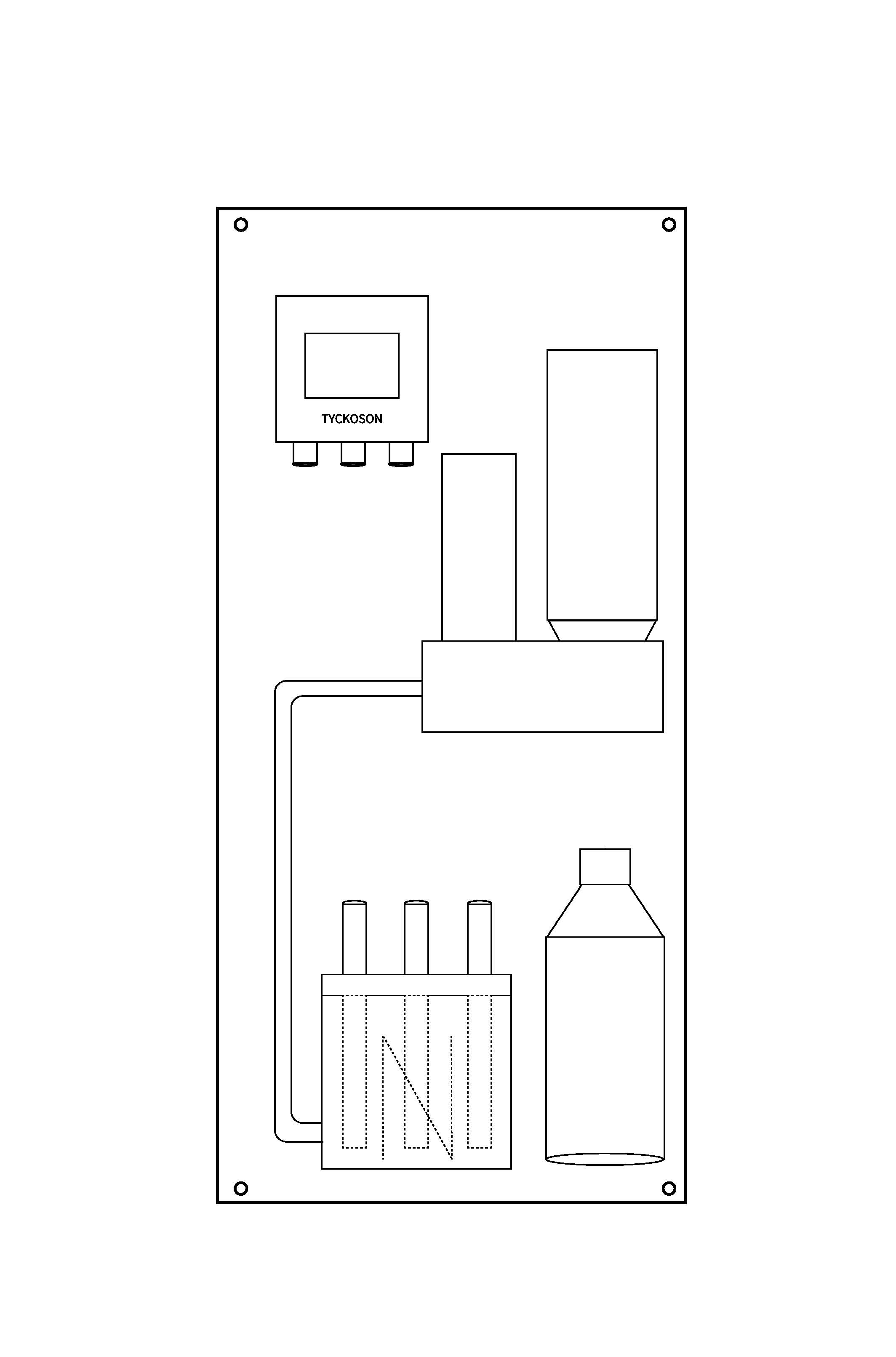

在线钠表分析仪

特点：

1、仪表由电源板、测量板、主板、触摸屏组成，方便后期维护、维修；

2、仪表独立安装pH电极，实时监测样水碱化效果；

3、仪表结构设计采用符合离子电极测量技术，并优化流路及流通池设计；

4、仪表采用5英寸触摸屏，仪表读数观察和操作更方便；

5、仪表人机操作系统操作维护便捷，界面友好。

Online Sodium Analyzer – Features

The instrument consists of a power board, measurement board, main board, and touchscreen, facilitating easy maintenance and repair.
A separately mounted pH electrode provides real‑time monitoring of the sample alkalinization (conditioning) effect.
The instrument design incorporates ion‑selective electrode measurement technology, with optimized flow path and flow cell configuration.
Equipped with a 5‑inch touchscreen for clearer readouts and more convenient operation.
The HMI (Human‑Machine Interface) system is user‑friendly, enabling simple operation and maintenance.

测量范围：0.001～10000μg/L

测量分辨率：0.001、0.01、0.1、1μg/L

电计电位示值误差：±0.1%FS

仪器示值误差：±0.02pNa

pH测量范围：0～14（选配）

pH仪器基本误差：±0.02pH

温度传感器：PT1000\2.25K\8.55K

温度分辨率：0.1℃

温度误差：±0.2℃

继电器输出：3路3A 220VAC

模拟量输出：2路 4～20mA 最大负载≤800Ω 隔离

模拟量输出类型：线性/对数

模拟量输出误差：±0.5%F•S

数字通讯：Modbus、可内置Profibus-DP（选配）

防护等级：IP65

仪表尺寸：350mmx600mm

样水入口尺寸：6mm

常压排放口尺寸：3/4NPT

压力：0.3～3Bar

流量：最小流量100mL/min

碱化剂：二异丙胺

环境温度：-10～50℃

存储温度：-20～+80℃

相对湿度：≤95%、无冷凝

供电电源：100～242VAC，50～60Hz

可选择2~4通道，例如四通道在线钠离子分析仪产品型号为NA-MPS6400。

Technical Specifications

Measuring range: 0.001 – 10000 μg/L
Measurement resolution: 0.001, 0.01, 0.1, 1 μg/L (selectable)
Meter potential indication error: ±0.1% FS
Instrument indication error: ±0.02 pNa
pH measuring range: 0 – 14 (optional)
pH instrument basic error: ±0.02 pH
Temperature sensor: PT1000 / 2.25K / 8.55K (selectable)
Temperature resolution: 0.1 °C
Temperature error: ±0.2 °C
Relay output: 3 channels, 3 A @ 220 V AC
Analog output: 2 channels, 4–20 mA, max. load ≤ 800 Ω, isolated
Analog output type: Linear / Logarithmic
Analog output error: ±0.5% F·S
Digital communication: Modbus; optional built‑in Profibus‑DP
Enclosure rating: IP65
Instrument dimensions: 350 mm × 600 mm
Sample inlet connection: 6 mm (tubing OD)
Atmospheric drain connection: 3/4″ NPT
Sample pressure: 0.3 – 3 bar
Sample flow rate: Minimum 100 mL/min
Alkalinizing agent: Diisopropylamine
Ambient temperature: –10 °C to +50 °C
Storage temperature: –20 °C to +80 °C
Relative humidity: ≤95%, non‑condensing
Power supply: 100 – 242 V AC, 50 – 60 Hz
