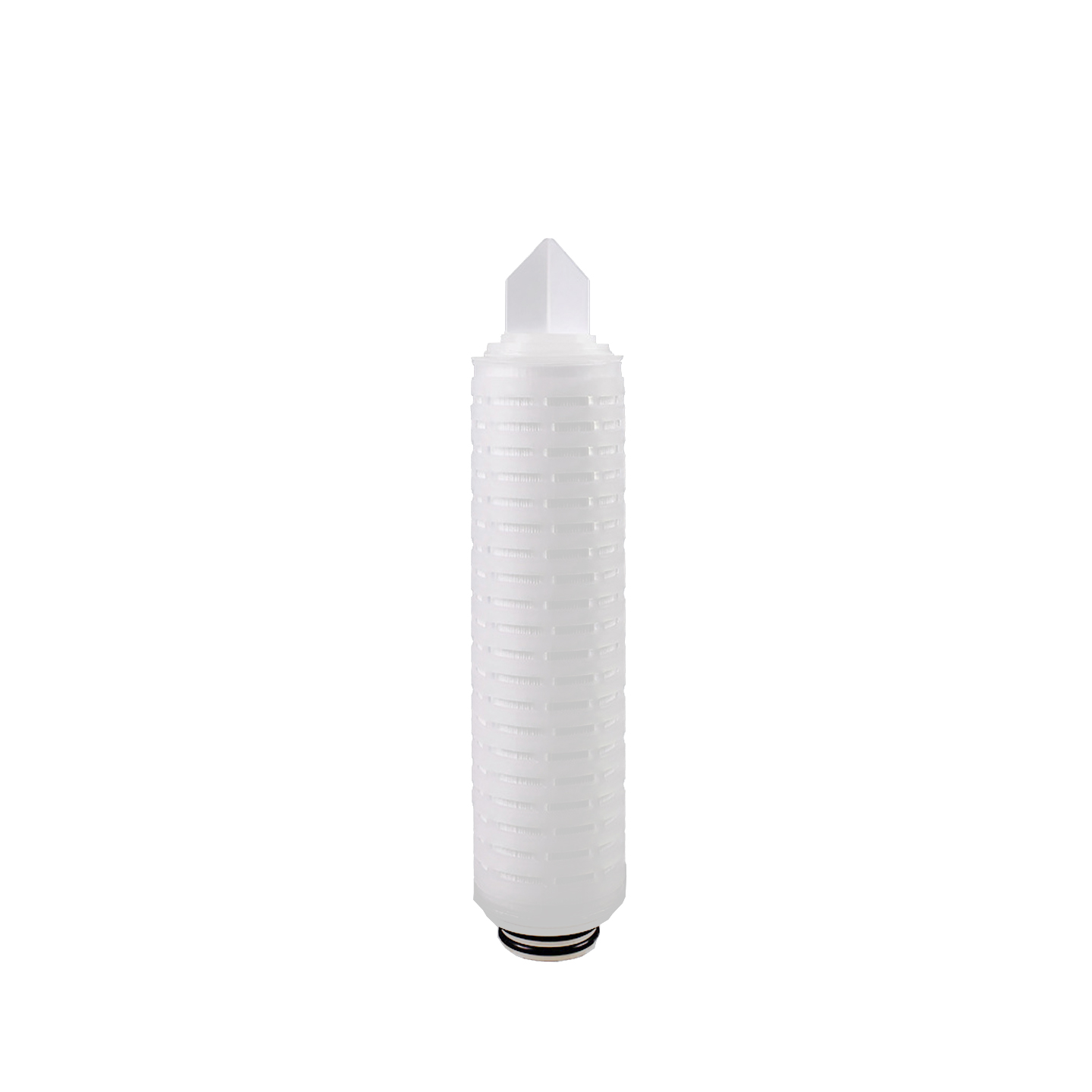

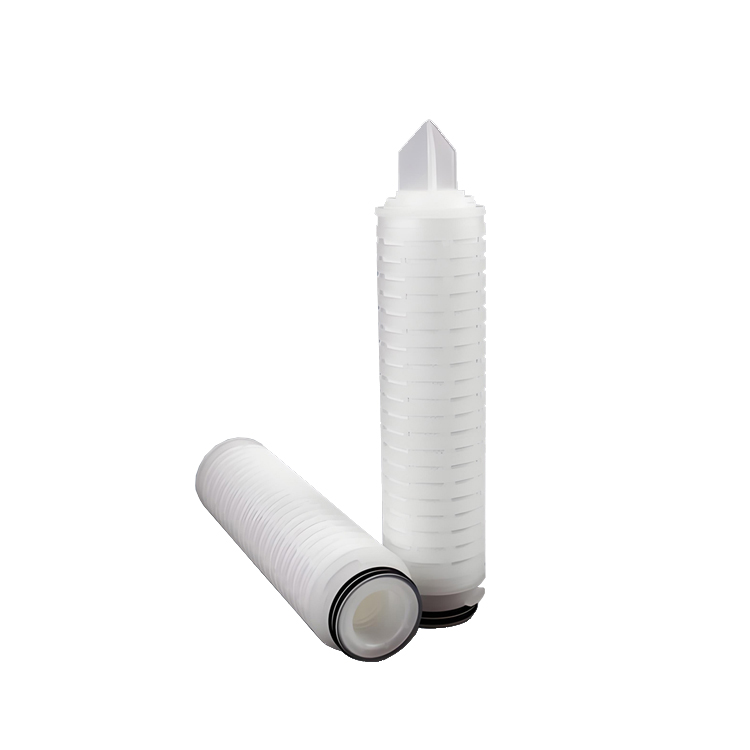

强力除菌过滤滤芯
Powerful filter element
TYSPS
TYSPS
发布时间:2024-05-04
Release time:2024-05-04
强力除菌过滤滤芯
Powerful filter element
产品分类 Products
Classification
产品介绍 product presentation
技术参数 technical specification
下载 download
订购指南 ordering guide

SPS系列聚醚砜滤芯膜开孔率远高于其他滤膜材质,使其命大大提高。天然亲水性聚醚砜材料,滤壳聚丙烯材质、滤材聚醚砜材质,拥有良好的化学相容性,保证产品绝对的过滤精度、高寿命和亲水性优异。产品出厂前对每支滤芯进行泡点测试与扩散流测试,确保通过完整性测试。



产品优点特性

● 过滤精度高,长使用周期

● 极好的亲水性能

● 拥有良好的化学相容性,PH适用范围1-14

SPS series polyether sulfone filter membrane opening rate is much higher than other filter membrane materials, so that its life is greatly improved. Natural hydrophilic polyether sulfone material, filter shell polypropylene material, filter material polyether sulfone material, with good chemical compatibility, to ensure the absolute filtration accuracy of the product, high life and excellent hydrophilicity. Bubble point test and diffusion flow test are carried out on each filter element before the product leaves the factory to ensure that the integrity test is passed.



Product advantages

High filtration accuracy, long service life

Excellent hydrophilicity

Good chemical compatibility, PH range 1-14

产品结构/材料

滤材

聚醚砜

支撑/导流层

聚丙烯

中心杆/骨架/端盖

聚丙烯

密封圈

见滤芯选型表



产品工作特性

最高工作温度

80℃

最高工作压差

0.4Mbar / 21°C

0.24M bar / 80°C

最大容许方向压差

0.2Mbar / 21°C

泡压

0.2μm10

过滤面积

0.66m²/10"

扩散流

30ml/min,2750mbar

0.2μm10“

细菌挑战

LRV>7,缺陷假单细胞

蒸气灭菌

121℃,30min

在线最大压差为0.03MPa

流动热水消毒

85℃,30min 最大压差为0.2MPa

清洗方式

2%NaOH溶液,≤65



Product structure/material

Filter material

polyether sulfone

Support/guide layer

polypropylene

Center rod/frame/end cap

polypropylene

Seal ring see filter

element selection table



Product operating characteristics

Maximum operating temperature

80℃

Maximum working pressure differential

0.4Mbar / 21°C

0.24M bar / 80°C

The maximum allowable directional differential pressure

0.2Mbar / 21°C

Bubble pressure

0.2μm10

Filter area

0.66m²/10"

Diffusion flow

30ml/min,2750mbar

0.2μm10“

Bacterial challenge

LRV>7, defective pseudomonocyte

Steam sterilization

121℃,30min

The maximum online pressure difference is 0.03MPa

Flow hot water disinfection

85℃,30min maximum pressure difference of 0.2MPa

Cleaning method

2%NaOH solution,≤65
